Ergonomic design USB/KB/RS232 interface wholesales 1d laser barcode scanner X-9300

  • 2 - 249 Pieces
    $15.00
  • 250 - 549 Pieces
    $10.00
  • >=550 Pieces
    $8.50
Model Number:
X-9300
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 500 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Barcode Scanner
Scan Element Type:
Laser
Colour Depth:
32 Bit
Interface Type:
USB, PS/2, RS232
Max Paper Size:
A4 Size
Optical Resolution:
0.10mm (4mil)
Scan Speed:
200 Scans/sec
Brand Name:
GTCODESTAR
Place of Origin:
Guangdong, China
Color:
white/black
Sensor:
sensor
Light Source:
visible laser 650nm
Reading ability:
all standard 1d bar codes
Certification:
CE,ROHS,FCC,FDA,ISO9001&ISO14001
Scanning range:
Bills
Application:
Supermarket, Logistics, Hospital E-payment
Size(L*W*H):
162mm*76mm*96mm
Shell material:
ABS+PVC+PC
Packaging & Delivery
Packaging Details
box
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 10 To be negotiated
Product Description


Features:


 Ergonomic design;


Convenient and easy to use;

Multiply built-in interface,USB/KB/RS232 interface for choice;

Fast and accurately decode all standard 1D bar codes;

Good anti-shock performance;

Suitable for supermarket, mall, shop, post office, warehouse etc use.


Technical Parameters
PHYSICAL CHARACTERISTICS
Material
ABS+PVC+PC
Size
L*W*H: 162mm*76mm*96mm
Power Supply
DC 5V±5%
Weight
120±5g (without cable)
PERFORMANCE CHARACTIESTICS
Interface Supported
USB, RS-232 PS/2
Sensor
Laser sensor
Light Source
Visible laser 650nm
Processor
32-bit MCU
Decode Capability
1D barcode like UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code 39, Codabar, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code128, Code 93, Code 11, MSI/PIESSEY, UK/PLESSEY, UCC/EAN128 code, etc.
Resolution
Code39 5mil, QR 8.7mil, PCS45%
Depth of Field
2~9cm(0.1mm bar width);3~40cm(0.3mm bar width)
Decoding Speed
200 scans/sec
Trigger mode
Manual; automatic successive scanning;automatic scanning with bracket(option)
Scanning Area
25cm (250cm2) 20cm (100cm2) 5cm(small area)
Print Contrast
no less than 35%
Scan Angles
10-600mm Elevation angle 60°, Inclination angle 45°
USER ENVIRONMENT
IP level
IP 42
Operating Temp.
-20ºC~50ºC
Storage Temp.
-20ºC~60ºC
Operating Humidity
5 - 95% (non-condensing)
Electrostatic protection
15KV
Shock Resistance
1.5m free fall on concrete surface
Application Scenario

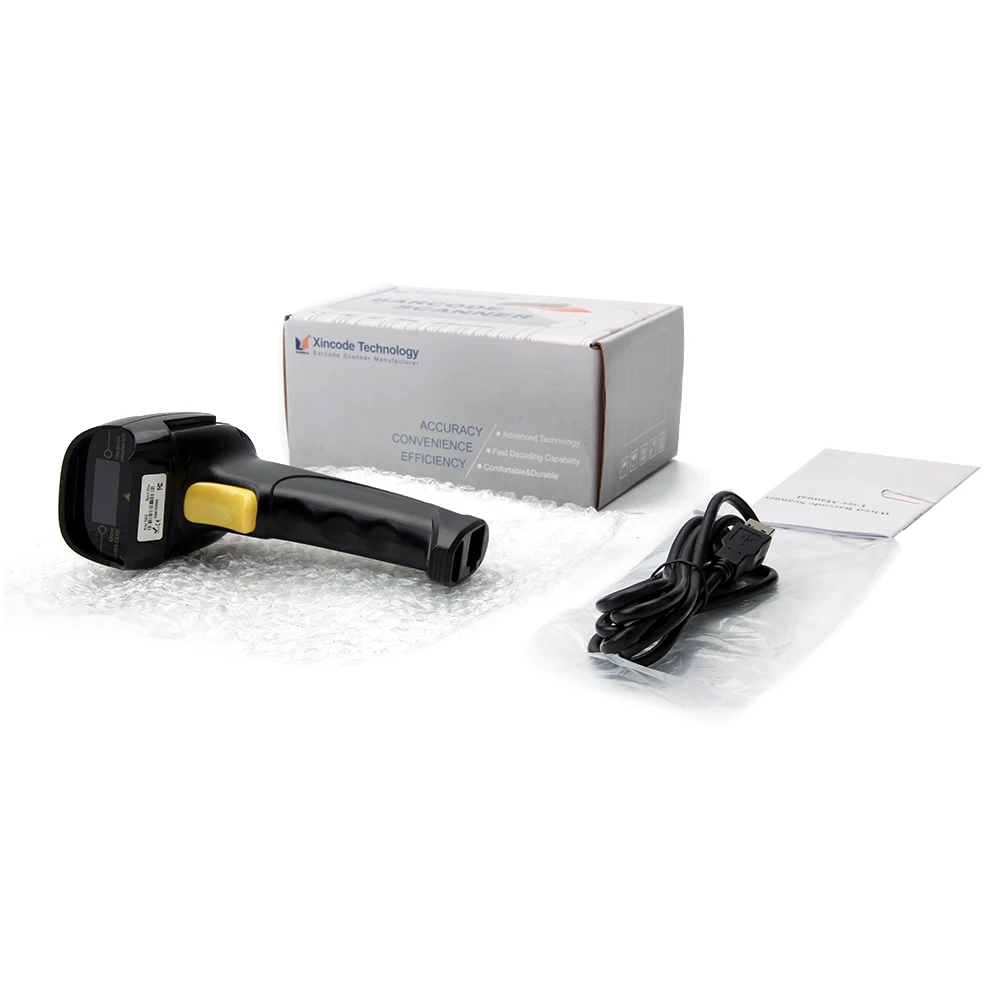

Packing & Delivery
