M-3100AT usb auto scan barcode scanner with stand

  • 2 - 19 Pieces
    $20.00
  • 20 - 99 Pieces
    $18.00
  • 100 - 199 Pieces
    $17.00
  • >=200 Pieces
    $16.00
Model Number:
M-3100AT
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 12 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Samples - $22.40 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Barcode Scanner
Scan Element Type:
LASER
Colour Depth:
16 Bit
Interface Type:
USB, COM, PS/2
Optical Resolution:
4mil
Scan Speed:
300 scans/second
Brand Name:
GTCODESTAR
Place of Origin:
Guangdong, China
Reading Mode:
Laser
Scanning Distance:
10mm-600mm
Scanning type::
Manual,Auto-sensing
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Bubble Bags and Kraft Paper Box
Port
Guangzhou/Shenzhen
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 12 To be negotiated
Video Description

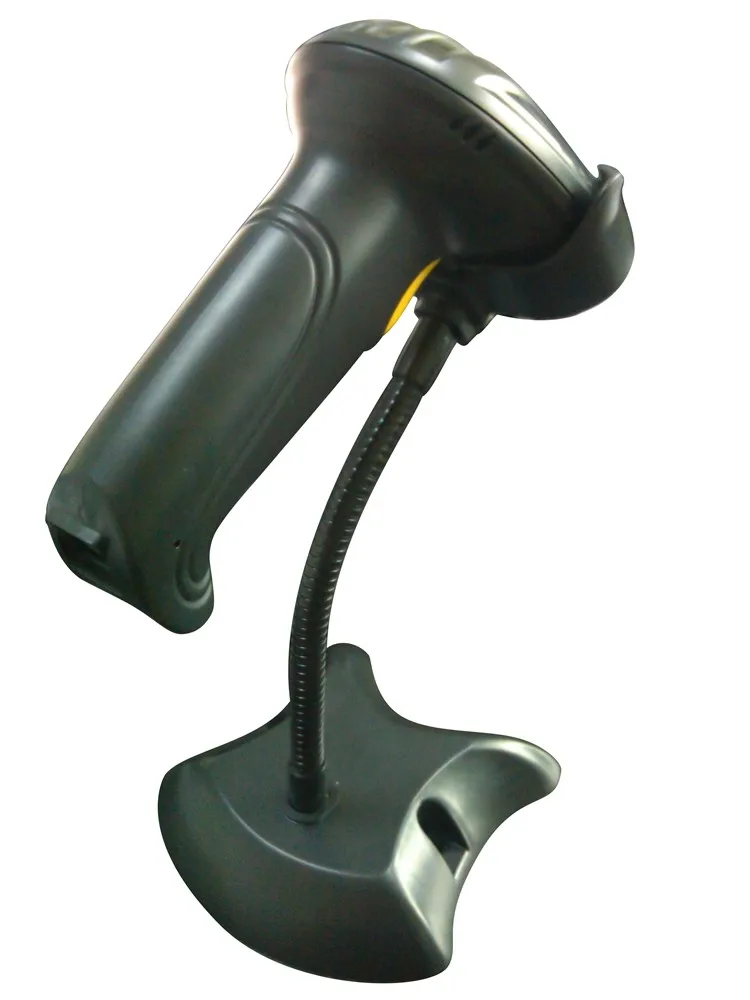

Automatic Laser Barcode Scanner With Stand

Technical Parameters
Technical Parameter
ModelM-3100(Upgraded version)
ItemWired Lser Barcode Scanner
Physical Parameter
MaterialABS+PVC+PC
Power SupplyDC 5V ±5%
Current50mA(working);30mA(standby);100mA(maximum)
Maximum Power Consumption0.5W
Weight131±5g(With cable)
SizeL*W*H:161.5 * 88.0 * 77.0(unit:mm)
ColorBlack;Grayish white
Button Lifespan>100000times
Performance Parameter
InterfaceUSB,PS/2;(RS232 can be customized)
System SupportedLinux,Android,Windows XP,7,8,10,MAC
Language SupportedEnglish, French, Dutch, Spanish (international), Italian (Italian 142), German,
etc.(language can be customized)
Light SourceVisable laser 650nm
Resolution4mil
Bit Error Rate1/5000000
Scanning speed100times/sec
Reading Modelaser
Trigger ModeManual ;Continuous scanning
Scanning Distance10mm-600mm
Prompt ModeBuzzer, Indicator Light(LED)
Print Contrast30%
Decoding
 Capability
Code25-Interleaved    Code25-Standard        Code25-Matri
Code39-Regular        Code39-FullASCII       Code32
Code93-Regular        Code93-FullASCII       Code128
EAN/GSL/UCC-128Auto   Codabar                MSI
EAN/JAN-13            UPC-A                  JAN-8
Code11                UPCE0
Scanning AngelRoll30°,Pitch75°,Yew75°
Scanning DepthCode39(4mil):4 - 7 cm
Code39(10mil):6 - 28 cm
Environment Parameter
IP GradeIP52
Operating Temp.0 to 50℃ / 32 to 122℉
Storage Temp.0 to 50℃ / 32 to 122℉
Operating Humidity20% to 85%(No Condensation)
Storage Humidity20% to 85%(No Condensation)
ESD Protection15KV air discharge
Shock Resistance1.5m free fall on concrete surface

Hot-selling Products

Company Information



FAQ

1. Fail to read barcodes.

A. Some barcode types don’t set to be read as factory default.

     Please check whether you enable this function.

B. The barcode is not correct. Please generate a new barcode.

C. There’s direct sunlight on the barcode and the photoreceptor becomes saturate.

     Please avoid direct sunlight.

D. There’s transparent material covered on the barcode.

     The high reflectance will influence the decoding performance.

E.  Hardware failure: defective engine board.

2. Can read barcodes, but can’t upload data.

A. Please check whether the cable is connected well.

B. Please check whether the settings of PC port and serial scanning are the same.

C. If it is wireless barcode scanner, please check if it is paired well with the computer.

3. There’s no electricity of the barcode scanner.

A. PC insufficient electricity supply or external power source failure.

B. Hardware failure: defective cable or mainboard.

4. Wireless barcode scanner pairs successfully, but can’t upload data.

Please reset factory default. Scan ‘factory default’ and ‘serial mode’.
